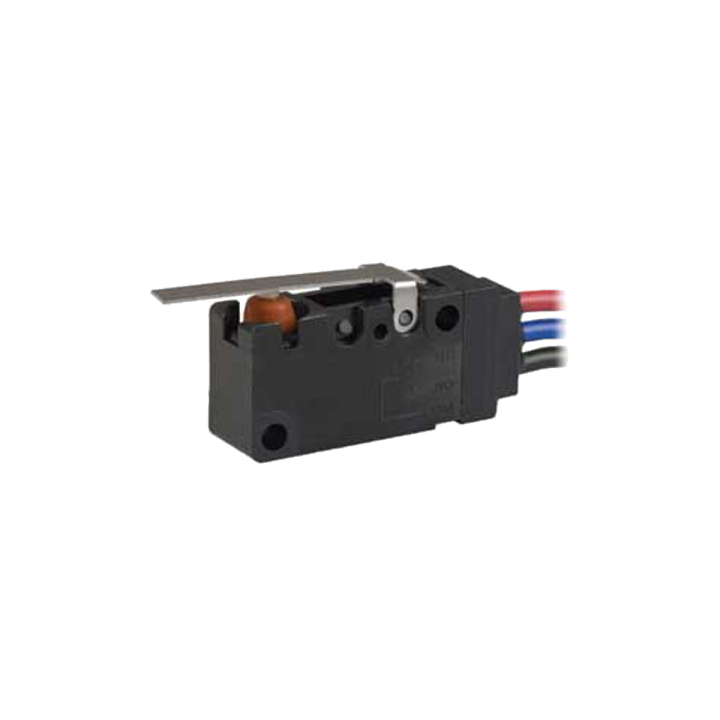

MS-682

Electrical rating 0.1 A, 5 A, 10 A

Circuitry SPDT, SPNC, SPNO

Operating force 15 g, 25 g, 50 g, 100 g, 200 g

Temperature rating -40 °C to 85 °C [-40 °F to 185 °F]

Operating speed 0,1 mm to 1 m/s (at plunger)

Operating frequency 200 operations/minute max. (mechanical)

30 operations/minute max. (electrical)

Insulation resistance 100 MOhm min. at 500 Vdc

Contact resistance 100 mOhm max.

300 mOhm max. for lead wire models

Contacts Silver nickel, gold-plated option

Terminals 4,8 mm x 0.8 mm or 4,8 mm x 0.5 mm
