• 357-103

357-103 10Kohm

13,51 €
Tasse incluse

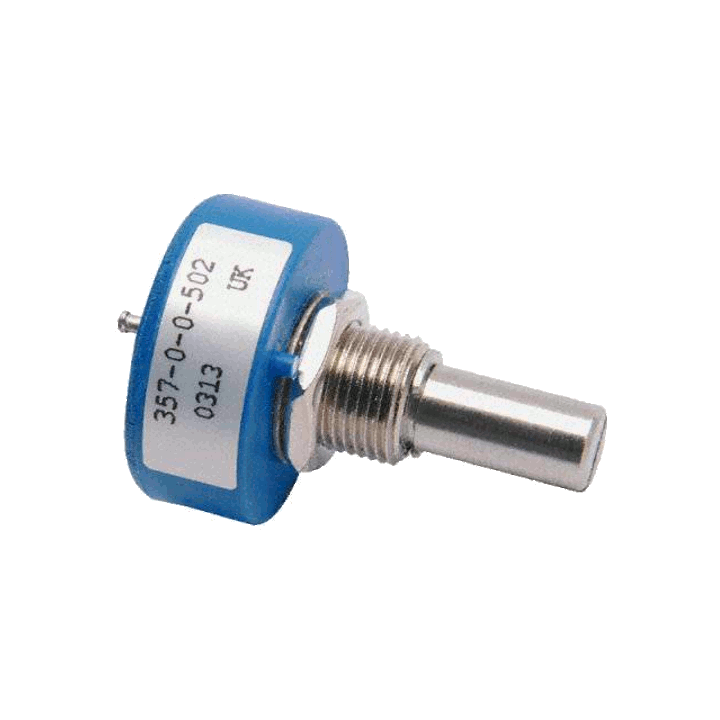

357-103 1 giro senza fermo Potenziometri di precisione VISHAY SPECTROL serie 357 1 giro
24/48h

  Politiche per la sicurezza

Collegamenti sicuri e protetti da certificato SSL

  Politiche per le spedizioni

Spedizioni sicure con corrieri espressi Tracciabili

  Politiche per i resi

Resi garantiti previa autorizazione RMA

Descrizione:
  • No. of Turns: 1
  • Resistance Tolerance: ? 10%
  • Series: 357
  • Power Rating: 1W
  • Resistor Element Type: Variable Rotary Cermet
  • Case Style: PCB Mount
  • Dielectric Strength, VAC: 750V
  • Electrical Angular Rotation Tolerance +: 5?
  • Electrical Angular Rotation Tolerance -: 5?
  • End Resistance: 2ohm
  • External Depth: 7.6mm
  • External Length / Height: 12.7mm
  • External Width: 12.7mm
  • Full Power Rating Temperature: 70?C
  • Insulation Resistance: 1000Mohm
  • Max Operating Temperature: 125?C
  • Mechanical Angular Rotation Tolerance +: 5?
  • Mechanical Angular Rotation Tolerance -: 5?
  • Min Temperature Operating: -55?C
  • Operating Temperature Range: -55?C to +125?C
  • Proof Voltage: 750V AC
  • Resistance: 25kohm
  • Rotation Electrical Angle: 360?
  • Rotation Mechanical Angle: 360?
  • Shaft Diameter: 6.35mm
  • Shaft Length - Metric: 22.225mm
  • Temperature Coeff. +: 100ppm/?C
  • Temperature Coeff. -: 100ppm/?C
  • Temperature Coefficient: ? 100ppm/?C
  • Thread Size: 3/8" 32 UNEF
  • Tolerance, +: 10%


  • Riferimento
    357-103
  • In magazzino
    20 Articoli
  • Condizione
    Nuovo
