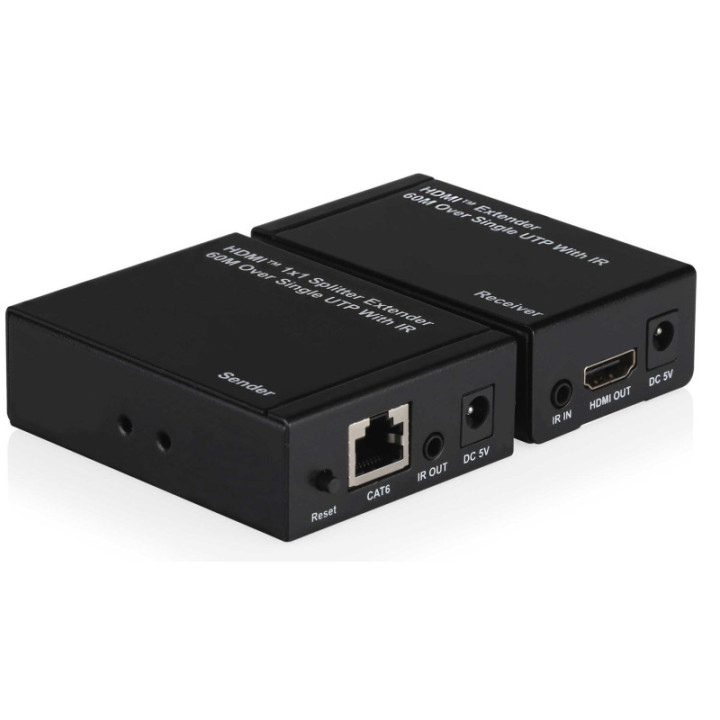

TX-RX Extender HDMI

Caratteristiche :

• Video Bandwidth................................................................................Single-link 165Mhz [4.95Gbps]
• Video Support…………………………………………………………………………480i/480p/720p/1080i/1080p@60
• Audio Support…………………………………………….Surround Sound (up to 7.1 ch) or stereo digital audio
• Transmission Range…................................................... HD [1080p 24-bit color] – up to 50m [164ft]
• Input TMDS Signal……………………………………………………………………………………………………………3.3 volts
• Input DDC Signal……………………………………………………………………………………………………….5.0 volts/P-P
• ESD Protection……………….... Human Body Model: ±8kv(air –gap discharge) ±4kv (contact charge)
• HDMI connector…………………………………………………………………………………………….Type A 19 pin female
• RJ-45 connector…………………………………………………………………………………………………………..WE/SS 8P8C
• 3.5mm connector………………………………………………………………………(TX and RX) IR Receiver/IR Blaster
• Housing…………………………………………………………………………………………………………………Metal enclosure
• Power Supply……………………………………………………………………………………………………………………5V1A DC
• Power consumption………………………………………………………………………….1.5 watts (TX); 1.0 watts (RX)
• Operation temperature…………………………………………………………...........0℃ to 40 ℃/32℉ to 104℉
• Storage temperature……………………………………………………………………-20℃to 60 ℃/-4℉ to 104℉
• Relative humidity…………………………………………………………………………..20~90 % RH (no condensation)
