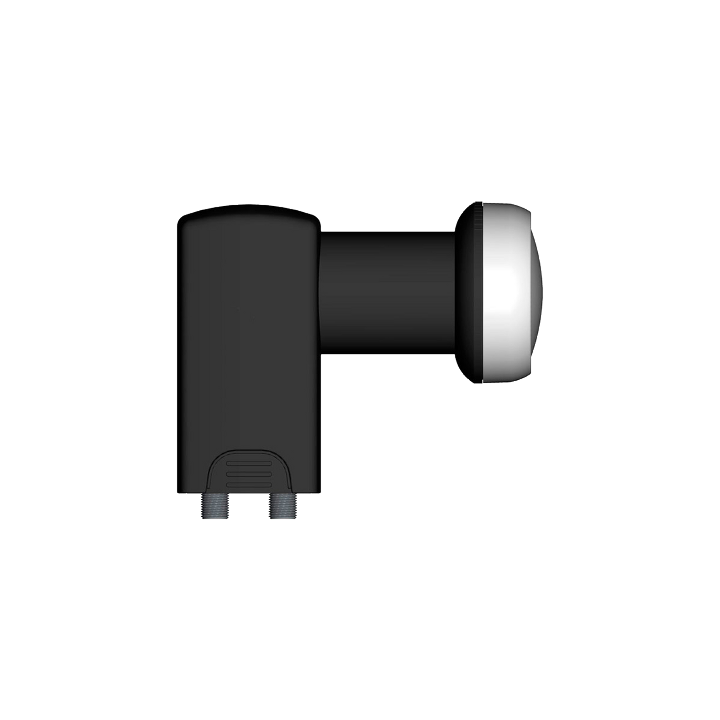

GT-T40M LNB twin universale

Name: GT-T40M LNB twin universale
Brand: VENTISETTE divisione Industria
SKU: GT-T40M
Price: 15.01 EUR
Availability: InStock

15,01 €

Tasse incluse

GT-T40M LNB GT-SAT Universal COMPACT ultraLTEfree LNB universali con caratteristiche di primissimo livello,caraterrizzati dall'esclusiva circuteria con TRIPLA schermatura LTE che rende gli lnb GTSAT Compact i migliori lnb attualmente in circolazione. LNB Twin 2 out GTSAT 40mm ultra LTEfree

In magazzino

24/48h

Caratteristiche :

Input Frequency Range	Low Band : 10.7 ~ 11.7 GHz High Band : 11.7 ~ 12.75 GHz
Output Frequency Range	Low Band : 950 ~ 1950 MHz High Band : 1100 ~ 2150 MHz
L.O. Frequency	Low Band : 9.75 GHz High Band : 10.60 GHz
L.O. Frequency Stability	+/-1 MHz (Max)@ Room Temp.
Local Oscillator Frequency Phase Noise	-60 dBc/Hz @ 1KHz (Max.) -85 dBc/Hz @ 10KHz (Max.) -100 dBc/Hz @ 100KHz (Max.)
Noise Figure	0.1 dB (Typ.)
Conversion Gain	57 ~ 61 dB
Gain Flatness 26 MHz Bandwidth	+/-0.5dB (Typ.)
Polarity Switching Voltage	VERTICAL: 11.0 ~ 14.0 Vdc HORIZONTAL: 16.0 ~ 20.0 Vdc
Band Switching	Low Band: 0 kHz High Band: 22 kHz (+/- 4 kHz)
Cross-Pol. Isolation	25 dB (Typ.)
Image Rejection	40 dB (Min.)
Current Consumption	140 mA (Typ.)
Output Connector Type	75 OHMS F-Female
Output Spurious	<-60dBm
Operating Temperature Range	-40?C ~ +65?C
Feed Length	42 mm
