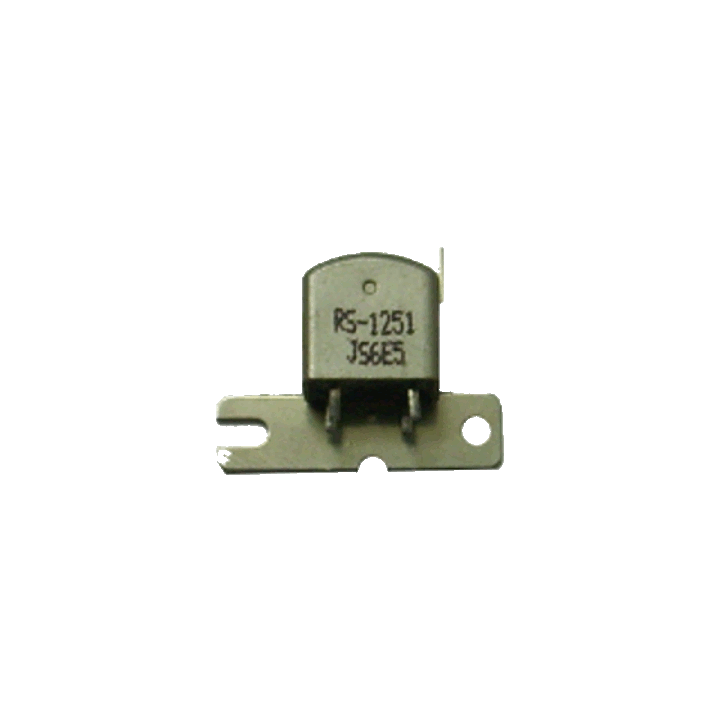

RS-1251 Testina audio STEREO

Caratteristiche :

• Impedance @ 1KHZ                                     850 ohms @ 100uA

• Impedance @ 80KHZ                                   28K ohms @ 100uA

• DC Resistance                                              215 ohms @ 20? C

• Bias Current @ 1KHZ                                   400uA/900uA*

• Audio Current @ 1KHZ                                 400uA/900uA*

• Rec/PB Sensitivity @ 1KHZ                          -70.0dB/-68.0dB*

• PB Sensitivity @ 315HZ @25mW level        -72.0dB

• Rec Frequency Resp. @10KHZ 1K=0dB      -9.0dB/-2.0dB*

• PB Frequency Resp. @ 10KHZ 315Hz=0dB  +9.0dB/+13.0dB*

• Distortion @ 1KHZ                                          3% max

• Induction Crosstalk @1kHz                            -30.0dB max

• Adjacent track Crosstalk @1kHz                    -35.0dB max

• Grounding Resistance @                               250VDC core to mounting base 3 ohms max

• Insulation Resistance 2                                   250VDC terminal to mounting base 50M ohms min

• Size (LxWxH) mm

• (w/o bracket)                                                    10 x 10 x 7

• Bracket Hole distance                                      18mm

• Weight (oz.)                                                      0.2
