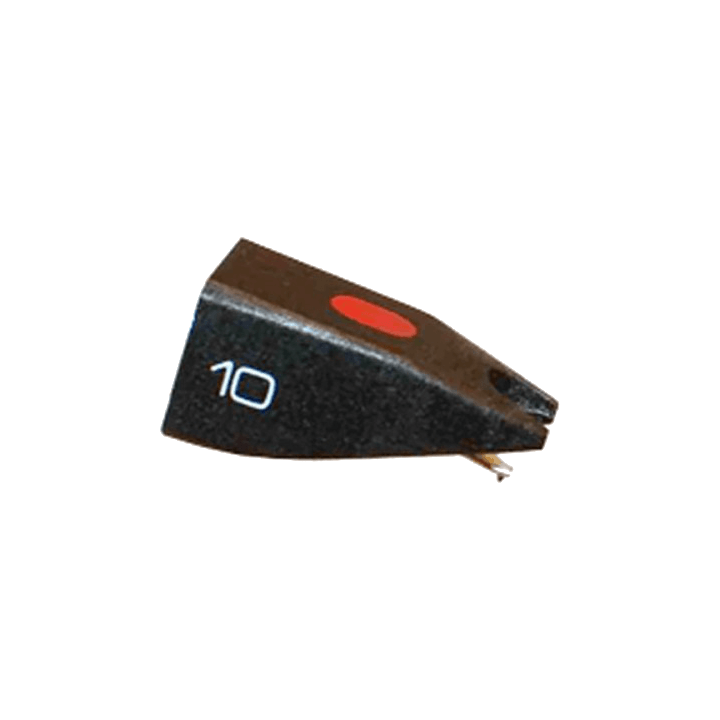

10 CONCORDE ORTOFON

Adatta per :

Super OM 10, OM 10, OMP 10, OMB 10, OMT 10, LM 10, Concorde 10, Concorde EC 10, TM 10H, LMB 12, SMB 12, LMA 12

Frequency range 20-24.000 Hz

Frequency response 20-20.000 Hz + 3 / - 1 dB

Tracking ability at 315Hz at recommended tracking force *) 70 m

Compliance, dynamic, lateral 25 m/mN

Stylus type Elliptical

Stylus tip radius r/R 8/18 ?m

Equivalent stylus tip mass 0,5 mg

Tracking force range 1,25-1,75 g (12,5-17,5 mN)

Tracking force, recommended 1,5 g (15 mN)

Tracking angle 20

Stylus colour Black

Recommended for following cartridges
