PRO-504S

118,00 €

Tasse incluse

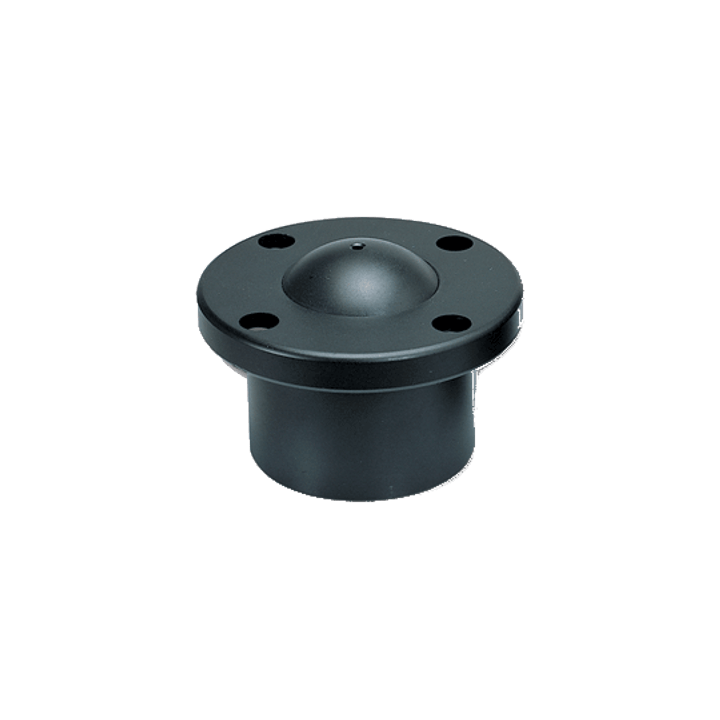

Telecamera da incasso B/N sensor 1/3"

Ultimi articoli in magazzino

24/48h

Caratteristiche :

IMAGE PICK-UP DEVICE : INTERLINE TRANSFER CCD 1/3" FORMAT
TV SYSTEM : EIA, CCIR
NO. OF PIXELS : EIA = 510(H) x 492(V) /CCIR = 500(H) x 582(V)
SCANNING SYSTEM : 2:1 INTERLACED
SYNC SYSTEM : INTERNAL SYNC
RESOLUTION : 380 TV LINE
USABLE ILLUMINATION : 0.1 LUX (F 1.2)
S/N RATIO : MORE THAN 64dB
GAMMA SHUTTER TIME : 0.45
VIDEO OUTPUT : 1.0 Vp-p 75ohm
ELECTRONIC SHUTTER TIME : EIA = 1/60 - 1/100,000 Sec CCIR = 1/50 - 1/100,000 Sec
POWER SUPPLY : DC 12V
POWER CONSUMPTION : 120mA
LENS : 3.6mm (92 Deg) F 2.0
OPERATIONAL TEMP. : 14 - 122 Deg F RH 95% MAX
STORAGE TEMP. : -4 - 140 Deg F RH 95% MAX
WEIGHT : Approx. 170gm
DIMENSIONS : 65mm, 2.5in (W) x 65mm, 2.5in (H) x 45mm, 1.75in (D)
